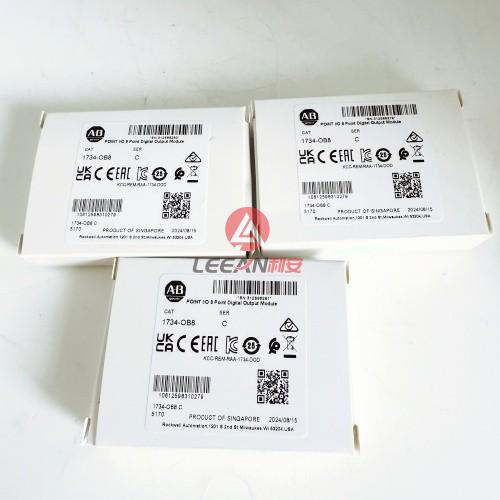

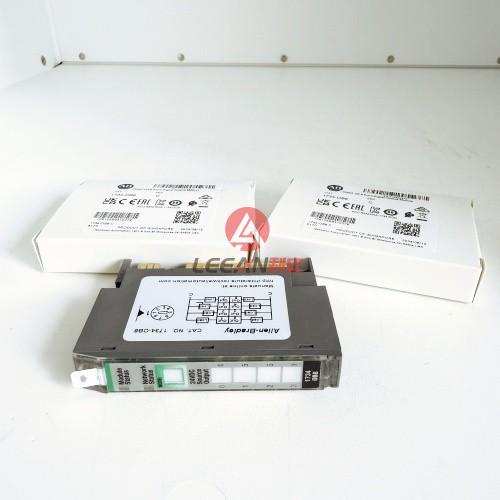

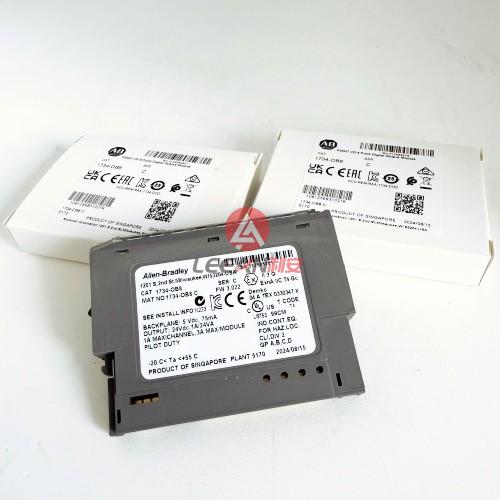

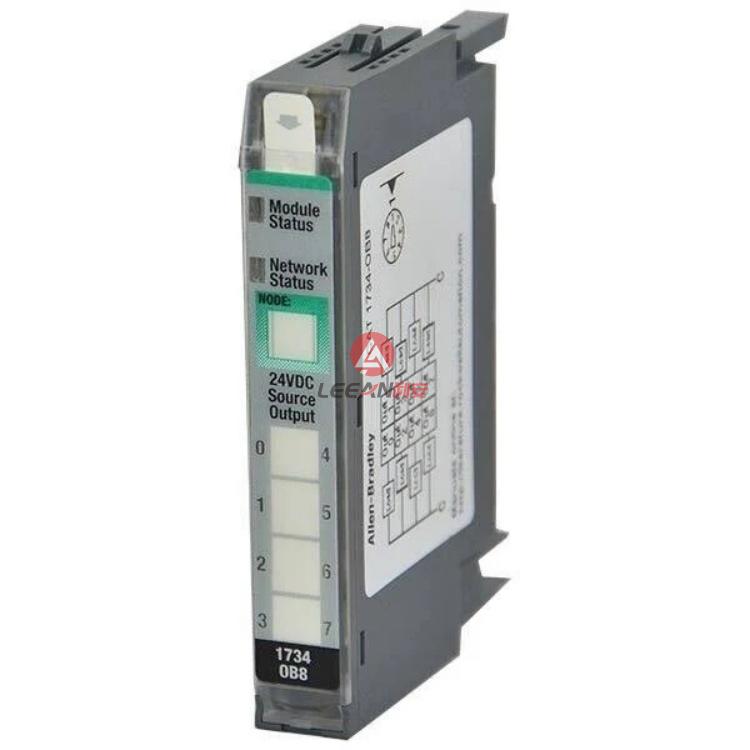

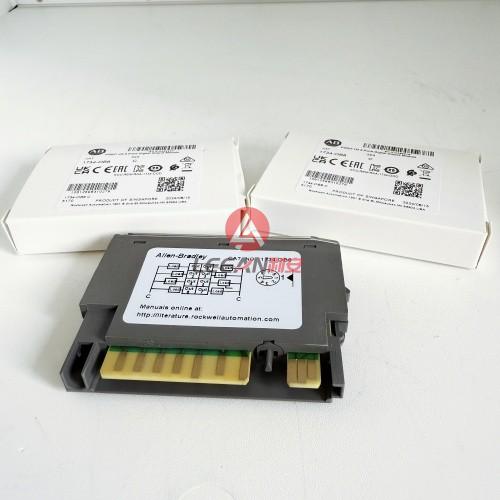

AB Allen Bradley Digital Output Module 1734-OB8 Point I/O 8 Channel Source Modules 24VDC New
Overview
The Allen-Bradley 1734-OB8 is a POINT IO module that features Eight (8) Discrete, non-isolated sourcing output channels. It has One (1) group of channels with Eight (8) outputs per channel. It delivers a nominal actuating voltage of 24VDC and compatible with any POINT IO communication adapter for implementing distributed I/O architecture. This module requires 1734-TB or 1734-TBS wiring base assembly.
I/O Module, 24 Volt DC, 8 Current Sourcing Outputs, 75 mA Pointbus Current
POINT I/O is a family of modular I/O products ideal for applications requiring flexibility and low cost of ownership. With one to eight channel density modules, including a self-configuring discrete module, the modularity of POINT I/O minimizes system costs and size. The ability to mix standard and safe I/O provides even greater flexibility and opportunities for standardization, regardless of application requirements. Since it can be used in local and remote I/O, POINT I/O further reduces engineering costs in design, installation and application development.
Features
Input, output, and relay output modules
Wide variety of voltages
Point-level output fault states for short-circuit and wire off diagnostics
Field-side diagnostics on select modules
Choice of direct-connect or rack-optimised communications
POINT Guard I/O™ modules for safety applications
Configurable modules - each point can be configured as a DC input or output
DeviceLogix technology available
Details
1734-IE2CK
1734-IE2VK
1734-IE2C
Manufacturer
AB Allen Bradley
Part Number/Catalog No.
1734-OB8
Specifications
Product Series:Point I/O (Bul. 1734)
Component Type Fieldbus I/O: Digital Output Module
Number of Digital Outputs: 8 qty
Digital Output Type:24V DC Sourcing (NPN) type
Digital Output Range: 10 ... 28.8V DC
Rated Current per Digital Output, Max:3 A max, per DO
Rated Current per Module, Max: 1 A max, per module
Power Supply: 24V DC
Operating Temperature, Max: 55 °C max
Operating Temperature, Min:-20 °C min
Storage Temperature, Max:85 °C max
Storage Temperature, Min: -40 °C min
Relative Humidity, Max: 95 %RH
Weight
0.2KG
Condition
New Original
Catalog Numbers
1734-OB2, 1734-OB4, 1734-OB4K, 1734-OB8, 1734-OB8K
