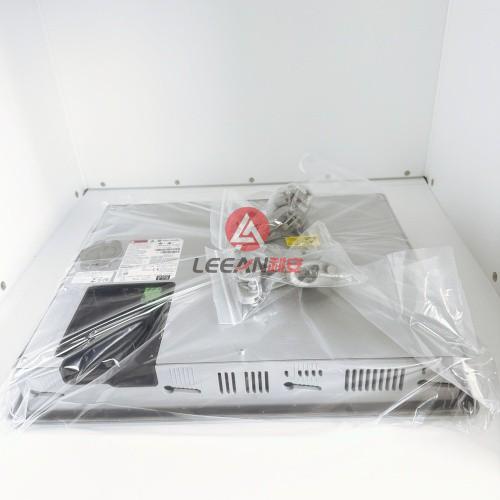

AB Allen Bradley 15 Inch HMI Touch Screen 2711P-T15C21D8S Panelview Plus 7 LCD TFT Display New
Overview
The Allen-Bradley 2711P-T15C21D8S is a PanelView Plus 7 operator terminal designed to enhance real-time operator interaction within various processes. This terminal features a 15-inch color Thin-Film-Transistor (TFT) LCD screen with a 304 x 228 mm viewing area, offering a display resolution of 1024 x 768 XGA and 18-bit color graphics in a 4:3 aspect ratio. The analog resistive touchscreen interface supports up to 1 million presses and requires an actuation force of 100 grams, making it operable with a gloved finger or a plastic stylus.
For seamless communication, the 2711P-T15C21D8S is equipped with an embedded Ethernet interface that supports linear topology, allowing direct connection to CompactLogix or ControlLogix Ethernet ports or via an external Ethernet switch, such as the Allen-Bradley Stratix Ethernet switch. This terminal operates on a voltage supply input of 18-30VDC, with a nominal supply of 24VDC. It has a power consumption of 50W max (2.1A at 24VDC) and a heat dissipation of 30 Watts or 102 BTU.
Designed to withstand various environmental conditions, the terminal operates within a temperature range of 0-55°C (32-131°F) at altitudes up to 2000 meters. It can endure operating shock and vibration of 15g at 11 ms and 2g peak at 57 to 500 Hz. The device also includes two USB ports for removable storage, mouse, and keyboard connectivity, and a single Secure Digital (SD) card slot for memory expansion.
Additional features include support for third-party devices, VNC client-server, and ActiveX controls. The terminal has a battery-backed Real-Time Clock with an accuracy of +/-2 minutes per month and a battery life of at least 4 years at 25°C (77°F). The replaceable battery is a CR2032 lithium coin cell. The backlight, which is not replaceable, has a lifespan of 50,000 hours minimum at 40°C to half-brightness. The terminal’s approximate weight is 3.07 kg (6.75 lbs) with dimensions of 318 x 381 x 56.5 mm and cutout dimensions of 290 x 353 mm.
Overall, the Allen-Bradley 2711P-T15C21D8S is a robust and efficient operator terminal designed to facilitate seamless and intuitive operator interaction in various industrial applications.
PanelView Plus 6 Touch Screen
2711P-T4W21D8S, 2711P-T4W22D8S, 2711P-T4W21D8S-B, 2711P-T4W22D8S-B, 2711P-T6C21D8S, 2711P-T6C22D8S, 2711P-T6C21D8S-B, 2711P-T6C22D8S-B, 2711P-T7C21D8S, 2711P-T7C22D8S, 2711P-T7C21D8S-B, 2711P-T7C22D8S-B, 2711P-T9W21D8S, 2711P-T9W22D8S, 2711P-T9W21D8S-B, 2711P-T9W22D8S-B, 2711P-T10C21D8S, 2711P-T10C22D8S, 2711P-T10C21D8S-B, 2711P-T10C22D8S-B, 2711P-T12W21D8S, 2711P-T12W22D8S, 1P-T10C21D8S-B, 2711P-T10C22D8S-B, 2711P-T12W21D8S, 2711P-T12W22D8S, 2711P-T12W21D8S-B, 2711P-T12W22D8S-B, 2711P-T15C21D8S, 2711P-T15C22D8S, 2711P-T15C21D8S-B, 2711P-T15C22D8S-B2711P-K7C4Dx, 2711P-T7C4Dx, 2711P-B7C4Dx, 2711P-K7C4Ax, 2711P-T7C4Ax, 2711P-B7C4Ax, 2711P-K10C4Dx, 2711P-T10C4Dx, 2711P-B10C4Dx, 2711P-K10C4Ax, 2711P-T10C4Ax, 2711P-B10C4Ax, 2711P-K12C4Dx, 2711P-T12C4Dx, 2711P-B12C4Dx, 2711P-K12C4Ax, 2711P-T12C4Ax, 2711P-B12C4Ax, 2711P-K15C4Dx, 2711P-T15C4Dx, 2711P-B15C4Dx, 2711P-K15C4Ax, 2711P-T15C4Ax, 2711P-B15C4Ax, 2711P-K4M5A8, 2711P-K4M5D8, 2711P-K4M20A8, 2711P-K4M20D8, 2711P-K4C5A8, 2711P-B4C5A8, 2711P-K4C5D8, 2711P-B4C5D8, 2711P-K4C20A8, 2711P-B4C20A8, 2711P-K4C20D8, 2711P-B4C20D8, 2711P-K6M5A8, 2711P-T6M5A8, 2711P-B6M5A8, 2711P-K6M5D8, 2711P-T6M5D8, 2711P-B6M5D8, 2711P-K6M20A8, 2711P-T6M20A8, 2711P-B6M20A8, 2711P-K6M20D8, 2711P-T6M20D8, 2711P-B6M20D8, 2711P-K6C5Ax, 2711P-T6C5Ax, 2711P-B6C5Ax, 2711P-K6C5Dx, 2711P-T6C5Dx, 2711P-B6C5Dx, 2711P-K6C20Ax, 2711P-T6C20Ax, 2711P-B6C20Ax, 2711P-K6C20Dx, 2711P-T6C20Dx, 2711P-B6C20Dx, 2711PC-K4M20D8, 2711PC-B4C20D8, 2711PC-T6M20D8, 2711PC-T6C20D8, 2711PC-T10C4D8
Similar HMI Touch Screen
Display Modules (700 to 1500 only)
Model
Description
2711P-RDK7C
700 keypad color display
2711P-RDT7C
700 touch color display
2711P-RDT7CM
700 touch color display, marine certified
2711P-RDB7C
700 keypad and touch color display
2711P-RDB7CM
700 keypad and touch color display, marine certified
2711P-RDT7CK
Conformal-coated 700 touch color display
2711P-RDK10C
1000 keypad color display
2711P-RDT10C
1000 touch color display
2711P-RDT10CM
1000 touch display, marine certified
2711P-RDB10C
1000 keypad and touch color display
2711P-RDB10CM
1000 keypad and touch display, marine certified
2711P-RDK12C
1250 keypad color display
2711P-RDT12C
1250 touch color display
2711P-RDT12AG
1250 touch color display with antiglare overlay
2711P-RDT12CK
Conformal-coated 1250 touch color display
2711P-RDT12H
1250 high-bright touch color display
2711P-RDB12C
1250 keypad and touch color display
2711P-RDK15C
1500 keypad color display
2711P-RDT15C
1500 touch color display
2711P-RDT15AG
1500 touch color display with antiglare overlay
2711P-RDB15C
1500 keypad and touch color display
Logic Modules (700 to 1500 only)
Standard Logic Modules for PanelView Plus Terminals
And CE Logic Modules for PanelView Plus CE Terminals
Model
Description
2711P-RP
Logic module without flash/RAM memory, DC input
2711P-RPD
Logic module, without memory, isolated DC input, marine certified
2711P-RPA
Logic module without flash/RAM memory, AC input, marine certified
2711P-RP1
Logic module with 64 MB flash/64 MB RAM, DC input
2711P-RP1A
Logic module with 64 MB flash/64 MB RAM, AC input, marine certified
2711P-RP1D
Logic module with 64MB, isolated DC input, marine certified
2711P-RP2
Logic module with 128 MB flash/128 MB RAM, DC input Compatible with ViewPoint Software.
2711P-RP2A
Logic module with 128 MB flash/128 MB RAM, AC input, marine certified
2711P-RP2D
Logic module with 128MB, isolated DC input, marine certified
2711P-RP2DK
Conformal-coated logic module with 128MB, isolated DC input
2711P-RP2K
Conformal-coated logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP3
Logic module with 256 MB flash/256 MB RAM, DC input
2711P-RP3A
Logic module with 256 MB flash/256 MB RAM, AC input, marine certified
2711P-RP3D
Logic module with 256MB, isolated DC input, marine certified
2711P-RP6
CE logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP6A
CE logic module with 128 MB flash/128 MB RAM, AC input, marine certified
2711P-RP6D
CE logic module with 128MB, isolated DC input, marine certified
2711P-RP6DK
CE conformal-coated logic module with 128MB, isolated DC input
2711P-RP6K
CE conformal-coated logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP7
CE logic module with 256 MB flash/256 MB RAM, DC input
2711P-RP7A
CE logic module with 256 MB flash/256 MB RAM, AC input, marine certified
2711P-RP7D
CE logic module with 256 MB, isolated DC input, marine certified
Overview of Touch Screen
Touch-screen displays are analog resistive and similar except for size.
The touch screen may be operated with a finger, gloved finger, or plastic stylus device with a minimum tip radius of 1.3 mm (0.051 in.) to prevent damage to the touch screen. Using any other object or tool may damage the touch screen.
