Description

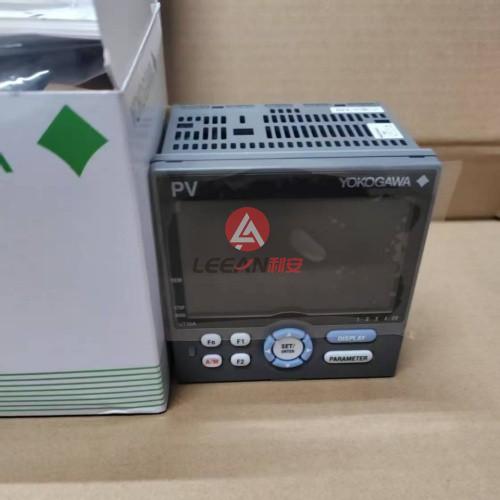

Yokogawa General Purpose Temperature Controller UT35A-000-11-00 UTAdvanced Digital Indicating Controller New
Overview:
The UT35A-000-11-00 is a Digital Indicating Controller employs an easy-to-read, 14-segment large colour LCD display, along with navigation keys, thus greatly increasing the monitoring and operating capabilities. A ladder sequence function is included as standard. The short depth of the controller helps save instrument panel space. The UT35A also support open networks such as Ethernet communication. The ladder sequence function is included as standard. This function allows for creating a simple sequence control. It can be easily connect with various vendors’ PLCs. It sets with only the minimum necessary parameters for operation.
The UT35A and UT32A temperature controllers employ an easy-to-read, 14-segment large color LCD display, along with navigation keys, thus greatly increasing the monitoring and operating capabilities. A ladder sequence function is included as standard. The short depth of the controller helps save instrument panel space. The UT35A/UT32A also support open networks such as Ethernet communication.
UT35A and UT32A Temperature Controller Features
4 target setpoints (PID numbers) available as standard
3 alarm independent common terminals available as standard
Ladder sequence programs can be built
Simple operation
Up to 8 DOs (combinations available)
Multiple language operation manual (Japanese, English, German, French, Spanish, Chinese and Korean) available. Please specify the desired language when ordering.
Detailed code model available to customize specifications best suited to you.
Product Details:
Size:1/4 DIN
UT35A-010-01-00
UT32A-000-01-00
Manufacturer :
YOKOGAWA
Product No. :
UT35A-000-11-00
Product type :
Temperature Controller
Specifications:
Depth from the panel surface (mm):65
Number of Control loops,Standard (Maximum):1
Control Scan Period(msec):200
Number of PV Display Digits:5
PV Input Indication Accuracy (% of F.S.):0.1
Number of Analog Inputs,Standard (Maximum):1
Number of SPs (PIDs) Maximum:4
Number of Analog Outputs,Standard (Maximum):2
Mass (weight):
2-3kg
Condition
New
Controllers
UT32A-000-10-00
UT32A-000-11-00
UT32A-000-00-00
UT32A-000-00-00/LP
UT32A-010-11-00
UT32A-010-11-00/HA
UT32A-010-10-00
UT32A-010-00-00/CV
UT32A-200-11-00/MD
UP35A-000-11-00
UT35A-001-10-00
UT32A-210-11-00/HA
UT55A-020-11-00
UT55A -001-11-00
UT55A -033-11-00
UT55A-NNN-11-UN
UT150-RN/AL
UT150-AN/AL/RET
UT150L-RN
UT150-AN
UT150-AN/AL S5
UT155-RR
UT350-00
UT750-51
UT351-21
UT35A -002-11-00 /HA/CT
UT35A-000-11-00/RSP
UT35A-000-01-00
UT35A-001-10-00
UT32A-210-11-00/HA
UT35A-001-11-00
UT35A-JHN-00-NN
UT35A-003-11-00
UT35-A13301*A
Warranty
One Year

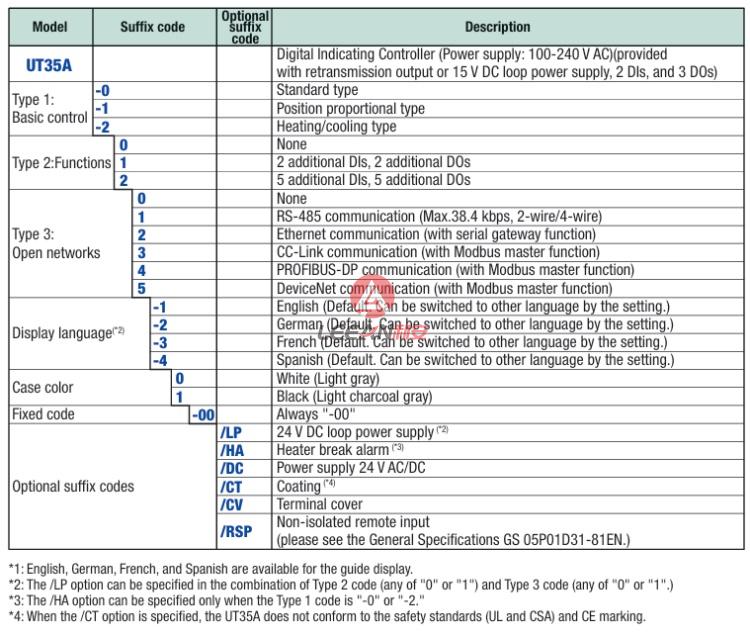

Model Choosing

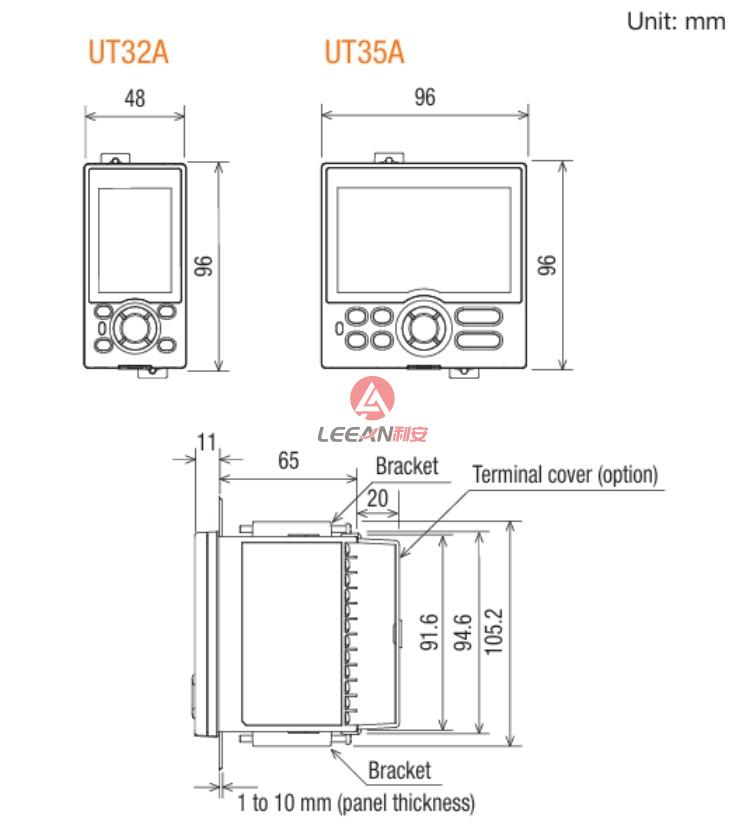

Dimensions
