Description

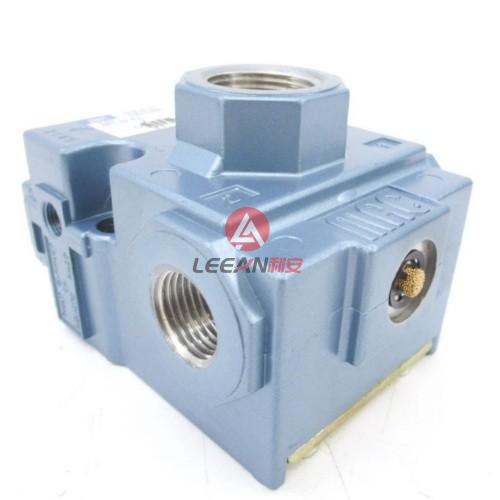

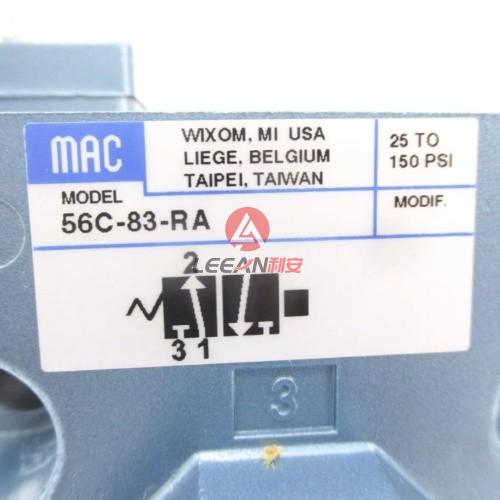

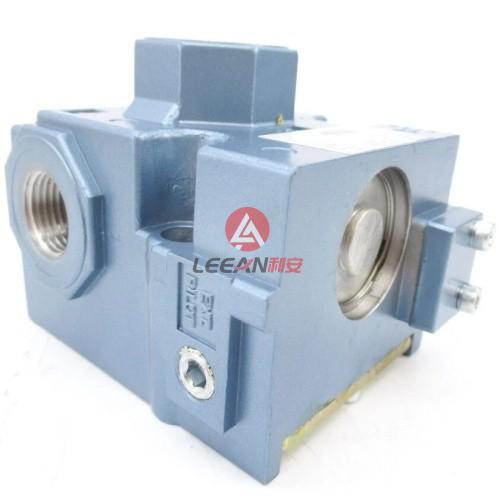

MAC 56 Series Operated Balanced Poppet Valve 56C-83-RA Solenoid Valves 25-150 PSI New Factory Sealed
Overview
The MAC 56 Series is a 3-way balanced spool valve piloted by a small direct operated balanced poppet valve. This is an extremely versatile valve: 1. It can be converted for use in vacuum. 2. It can be changed from a Normally Closed function to a Normally Open function by simply rotating a function plate between the pilot and main valve bodies. 3. It can also be converted to a remote air operated valve by removing the solenoid pilot assembly – just to name a few.
OPERATIONAL BENEFITS
1. Balanced spool, immune to variations of pressure.
2. Short stroke with high flow.
3. The piston (booster) provides maximum shifting forces.
4. Powerful return thanks to the combination of mechanical and air springs.
5. Bonded spool with minimum friction, shifting in a glass-like finished bore.
6. Wiping effect eliminates sticking.
7. Low leakage rate
Product Details
| Brand | MAC |
|
Article Number (Market Facing Number) |
56C-53-RA |
| Type |
Solenoid Valve |
| Condition | New Factory Sealed |
|
Technical data |
Cv (Max): 5.7 Port Sizes: 3/8″-3/4″ Configurations: Individual Inline Fluid :Compressed air, vacuum, inert gases Pressure range :Vacuum to 150 PSI Air signal pressure :25 - 150 PSI ≥ main valve pressure Lubrication :Not required, if used select a medium aniline point lubricant (between 180°F to 210°F) Filtration :40 µ Temperature range :0°F to 120°F (-18°C to 50°C) Flow (at 6 bar, ∆P=1bar) :3/8” : (6.0 Cv), 1/2" : (6.1 Cv), 3/4" : (6.2 Cv) Leak rate : 140 cm3/min Spare parts : • Remote air operator : R-56001. • Check valve : 70063. Options :• BSPP threads |
| Net Weight (kg) | 2 Kg |
|
Packaging Dimension |
44,00 x 42,00 x 57,00 |
| Other Remote Air Operator |
56C-52-RA 56C-53-RA 56C-57-RA 56C-52-RE 56C-53-RE 56C-57-RE 56C-82-RA 56C-83-RA 56C-87-RA 56C-82-RE 56C-83-RE 56C-87-RE
