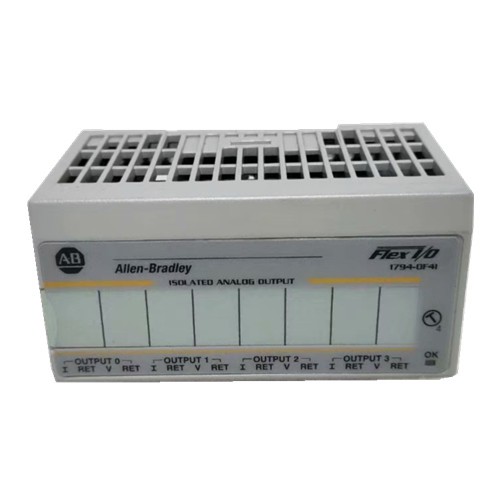

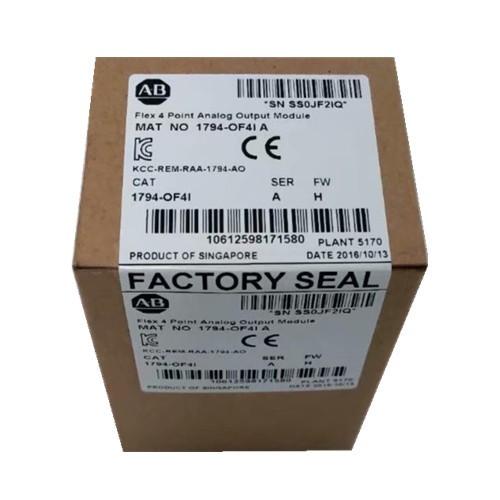

New Allen Bradley FLEX Input Output Isolated Output Analog Module 1794-OF4I
  1. New Allen Bradley FLEX Input Output Isolated Output Analog Module 1794-OF4I
  2. New Allen Bradley FLEX Input Output Isolated Output Analog Module 1794-OF4I
  3. New Allen Bradley FLEX Input Output Isolated Output Analog Module 1794-OF4I

New Allen Bradley FLEX Input Output Isolated Output Analog Module 1794-OF4I

AB FLEX input output adapter  , Rockwell isolated analog output module  , four output module
Send Inquiry Live chat

Description

New Allen Bradley FLEX Input Output Isolated Output Analog Module 1794-OF4I



Description

The Allen-Bradley 1794-OF4I Flex I/O Isolated Output Analog Module has 4 Isolated Outputs, a 15 bits Resolution, and a Digital-to-Analog Converter Conversion Type. It also operates with a 3mA max. Current Load on Voltage Output and a 50mA FlexBus Current.
The Allen-Bradley 1794-OF4I is a FLEX I/O analog module. It has 4 isolated analog outputs that is compatible with several terminal base units, namely the 1794-TBT, 1794-TB3, 1794-TB3TS, 1794-TB3S, 1794-TBNF, and the 1794-TBN. It can be mounted using a DIN rail or a panel, it has an open enclosure, and it measures 3.7 x 2.6 x 3.7 inches.

The external DC voltage range of the 1794-OF4I module is 19.2 to 31.2 Volts DC, including the 5% AC ripple. It also has an external DC power supply current of 210 mA at 24 Volts DC. Its maximum overload is 30 Volts or 32 mA continuous in one channel at a time. This module has a maximum 3 mA current load on voltage output and a 0 to 750 resistive load on voltage output. Its output current ranges are 4 to 20 mA and 0 to 20 mA. Both of these ranges are user-configurable. The module's output voltage varies from +/-10 Volts, +/-5 Volts, 0 to 10 Volts, and 0 to 5 Volts, all of which are also user-configurable. Both the voltage and current terminals have 0 output until the module is configured.


Specifications

Manufacturer
AB Rockwell Automation
Part Number/Catalog No.
1794-OF4I
Conversion Type
Digital to Analog Converter
No. of outputs
Four (4); isolated
Resolution
15 bits plus sign
Product Description
Flex IO High Output Module
Output type
4-20 mA, 0-20 mA and ±10VDC; 0-10VDC; +/- 5VDC and 0-5VDC
Voltage Resolution
0.320 mV/cnt
Current resolution
0.656 mA/cnt
Step response to 63% of full scale
< 25 ms
Terminal base
1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794- TB3TS, 1794-TBN
External DC supply, nom 24V DC
External DC supply range 19.2…31.2V DC (includes 5% AC ripple)


Related Models

1794-ACN
24V dc ControlNet Adapter
1794-ACNR
24V dc Redundant Media ControlNet Adapter
1794-ACN15
24V dc ControlNet Adapter
1794-ACNR15
24V dc Redundant Media ControlNet Adapter
1794-ADN
24V dc DeviceNet Adapter
1794-ASB/C
24V dc Remote I/O Adapter
1794-ASB2/B
24V dc 2-Slot Remote I/O Adapter
1794-APB
24V dc Profibus Adapter
1794-IB8
24V dc 8 Sink Input Module
1794-OB8
24V dc 8 Source Output Module
1794-IB16
24V dc 16 Sink Input Module
1794-OB16
24V dc 16 Source Output Module
1794-IV16
24V dc 16 Source Input Module
1794-OV16
24V dc 16 Sink Output Module
1794-OB8EP
24V dc 8 Electronically Fused Output Module
1794-IB8S
24V dc Sensor Input Module
1794-IB10XOB6
24V dc 10 Input/6 Output Module
1794-IE8
24V dc Selectable Analog 8 Input Module
1794-OE4
24V dc Selectable Analog 4 Output Module
1794-IE4XOE2
24V dc 4 Input/2 Output Analog Module
1794-OF4
24V dc 4 Output Isolated Analog Module
1794-IF4
24V dc 4 Input Isolated Analog Module
1794-IF2XOF2
24V dc 2 Input/2 Output Isolated Analog Module
1794-IR8
24V dc 8 RTD Input Analog Module
1794-IT8
24V dc 8 Thermocouple Input Module
1794-IRT8
24V dc 8 Thermocouple/RTD Input Module
1794-IJ2
24V dc 2 Frequency Input Module
1794-IA8
120V ac 8 Input Module
1794-OA8
120V ac Output Module
1794-TB2
2-wire Terminal Base
1794-TB3
3-wire Terminal Base
1794-TBN
Terminal Base Unit
1794-TBNF
Fused Terminal Base Unit
1794-TB3T
Temperature Terminal Base Unit
1794-TB3S
Spring Clamp Terminal Base Unit
1794-TB3TS
Spring Clamp Temperature Base Unit
1794-TB3G
Terminal Base Unit
1794-TB3GS
Spring Clamp Terminal Base Unit
1794-CE1,1794-CE3
Extender Cables
1794-NM1
Mounting Kit
1794-PS1
24V dc Power Supply

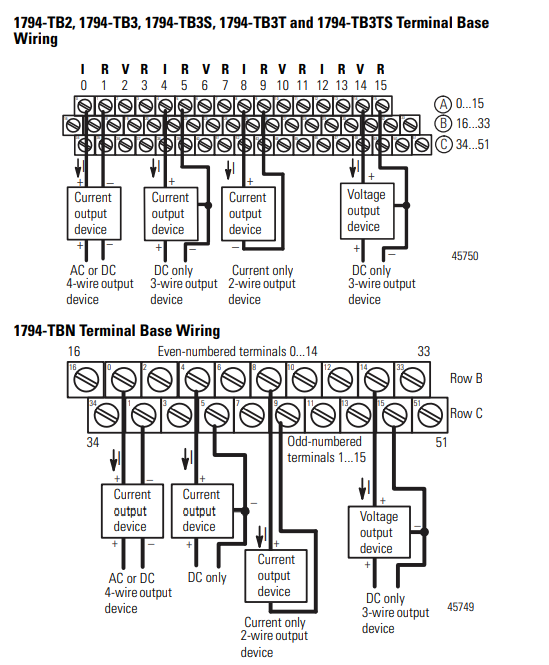

1794-TB2,1794-TB3,1794-TB3S,1794-TB3T,1794-TB3TS and 1794-TBN  Terminal Base Wiring
