Fanuc CNC Electronic Power Supply Module Servo Drive A06B-6150-H045
Details of servo driver A06B-6150-H045 :
Main power supply :
400 to 480V
Control power supply :
200 to 240VAC
Main circuit capacity:
Rated output :
Maximum output capacity :
Peak maximum output capability :

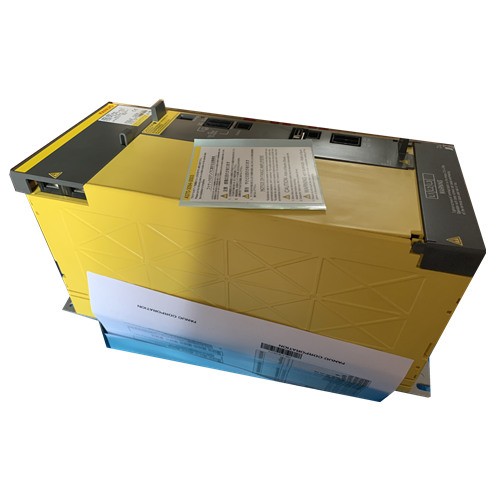

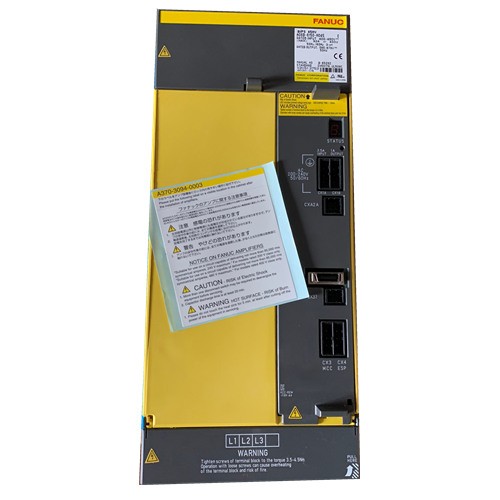

The standard module unit A06B-6150-H045 is a 400-V Input Series module manufactured by Fanuc as a part of the Servo Amplifier αi series. It is designed as the main power supply of motor power while it is also able to bring supply control power to the servo amp. The αi PS 45HV module A06B-6150-H045 employs a thin, modular structure. The space-saving design allows for energy savings as it puts out less heat.
The high-efficiency radiator helps achieve less depth of the modular amp unit and saves depth space while the width has also been reduced to take up less space in the cabinet.
Features of the A06B-6150-H045:

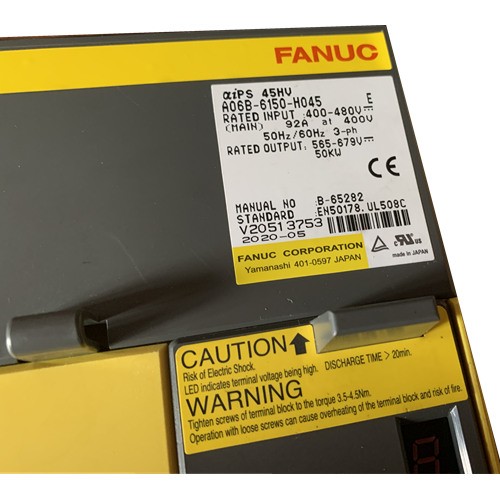

The αi PS series module A06B-6150-H045 has the main circuit power supply rating of 400 to 480VAC +10%,-15%,3φ 50/60Hz, ±1Hz and the control power rating is 200 to 240VAC +10%,-15%,1φ 50/60Hz, ±1Hz. The main circuit equipment power capacity for the αi PS 45HV A06B-6150-H045 is 64kVA.The equipment capacity for control power is 0.7kVA for all 400-V input series modules like the A06B-6150-H045. The rated output capacity for the αi PS 45HV is 50kW, and the control method for all of the 400-V input modules in this Fanuc series is power source regeneration. If using voltages not listed here, a power transformer may be necessary.
When choosing the correct αi PS module for your specific needs, refer to the output capacities. The output capacity for the αi PS 45HV A06B-6150-H045 module is 45kW. The maximum output capacity for this Fanuc module is 102kW, and the peak max output capability for the A06B-6150-H045 αi PS 45HV is 137kW.
