Allen Bradley PLC Flex Input Output ControlNet Redundant Adapter Module 1794-ACNR15

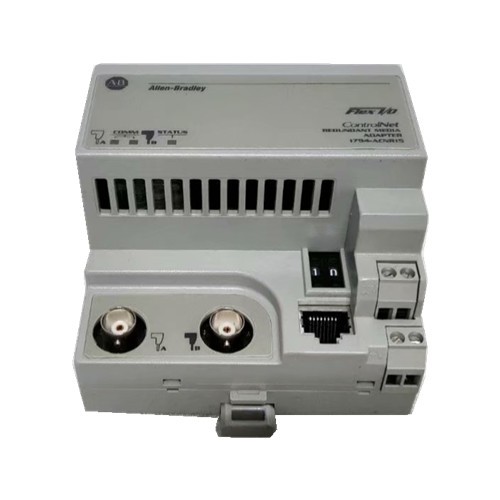

  1. Allen Bradley PLC Flex Input Output ControlNet Redundant Adapter Module 1794-ACNR15

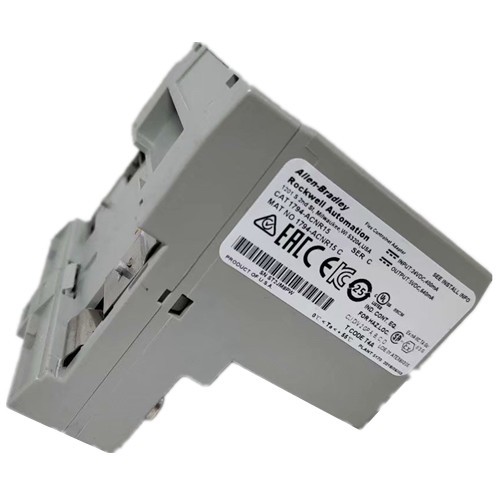

  2. Allen Bradley PLC Flex Input Output ControlNet Redundant Adapter Module 1794-ACNR15
  3. Allen Bradley PLC Flex Input Output ControlNet Redundant Adapter Module 1794-ACNR15

Allen Bradley PLC Flex Input Output ControlNet Redundant Adapter Module 1794-ACNR15

AB FLEX input output adapter  , Rockwell communication adapter  , ControlNet redundant media module
Send Inquiry Live chat

Description

Allen Bradley PLC Flex Input Output ControlNet Redundant Adapter Module 1794-ACNR15 Redundant Media Module



Description


The Allen-Bradley 1794-ACNR15 is a Flex I/O communication adapter. This adapter is a DIN rail mounted device, which features dual ControlNet port, used in implementation of Redundant ControlNet data highway, It supports up to Eight (8) Flex I/O modules. It supports ControlNet version 1.5.
The Allen-Bradley 1794-ACNR15 Redundant Media ControlNet Adapter has a 24 V DC Voltage, a 8 Modules I/O Capacity, and a 19.2-31.2V DC Input Voltage Range. It also operates with a 850V DC Isolation Voltage and a 23A for 2ms Inrush Current.

This version of the 1794-ACN15 and 1794-ACNR15 adapters changed how the adapter firmware is displayed in RSNetWorx for ControlNet (version 3.0 and earlier).
Previous versions of the adapters displayed an alpha for the firmware version. For example, C/F was displayed to indicate major firmware revision C (3), minor firmware revision F (6). This release displays the firmware revision numerically. For example, 4.1 is displayed to indicate major firmware revision 4, minor firmware revision 1.
Customers using RSNetWorx for ControlNet (revision 3.21 or later) will see all current and previous versions of the 1794-ACN15, 1794-ACNR15 adapter firmware displayed  numerically. The series display remains unchanged; it is still displayed as Series C.


Specifications

Manufacturer
AB Rockwell Automation
Part Number/Catalog No.
1794-ACNR15
Product Description
1794 ControlNet Adapter Module
Product Type
Redundant Media ControlNet Adapter
Programming software:
RSLogix5, RSLogix500, RSLogix5000, Studio 5000 Logix Designer
Communication Port:
Two (2) ControlNet BNC
Operating Temperature:
-20…55 °C -4…131 °F)
Storage Temperature:
55 °C (131 °F)
Voltage
24 Volts DC
Input Voltage Range
19.2 to 31.2 Volts DC
Flexbus Output Current
640 mA maximum
Isolation Voltage
850 Volts DC
Inrush Current
23A for 2 milliseconds
Current Draw
450mA max.
Power Dissipation
3.4W maximum @ 19.2V dc


Related Models

1794-ACN
24V dc ControlNet Adapter
1794-ACNR
24V dc Redundant Media ControlNet Adapter
1794-ACN15
24V dc ControlNet Adapter
1794-ACNR15
24V dc Redundant Media ControlNet Adapter
1794-ADN
24V dc DeviceNet Adapter
1794-ASB/C
24V dc Remote I/O Adapter
1794-ASB2/B
24V dc 2-Slot Remote I/O Adapter
1794-APB
24V dc Profibus Adapter
1794-IB8
24V dc 8 Sink Input Module
1794-OB8
24V dc 8 Source Output Module
1794-IB16
24V dc 16 Sink Input Module
1794-OB16
24V dc 16 Source Output Module
1794-IV16
24V dc 16 Source Input Module
1794-OV16
24V dc 16 Sink Output Module
1794-OB8EP
24V dc 8 Electronically Fused Output Module
1794-IB8S
24V dc Sensor Input Module
1794-IB10XOB6
24V dc 10 Input/6 Output Module
1794-IE8
24V dc Selectable Analog 8 Input Module
1794-OE4
24V dc Selectable Analog 4 Output Module
1794-IE4XOE2
24V dc 4 Input/2 Output Analog Module
1794-OF4
24V dc 4 Output Isolated Analog Module
1794-IF4
24V dc 4 Input Isolated Analog Module
1794-IF2XOF2
24V dc 2 Input/2 Output Isolated Analog Module
1794-IR8
24V dc 8 RTD Input Analog Module
1794-IT8
24V dc 8 Thermocouple Input Module
1794-IRT8
24V dc 8 Thermocouple/RTD Input Module
1794-IJ2
24V dc 2 Frequency Input Module
1794-IA8
120V ac 8 Input Module
1794-OA8
120V ac Output Module
1794-TB2
2-wire Terminal Base
1794-TB3
3-wire Terminal Base
1794-TBN
Terminal Base Unit
1794-TBNF
Fused Terminal Base Unit
1794-TB3T
Temperature Terminal Base Unit
1794-TB3S
Spring Clamp Terminal Base Unit
1794-TB3TS
Spring Clamp Temperature Base Unit
1794-TB3G
Terminal Base Unit
1794-TB3GS
Spring Clamp Terminal Base Unit
1794-CE1,1794-CE3
Extender Cables
1794-NM1
Mounting Kit
1794-PS1
24V dc Power Supply



Overview



ControlNet Adapter, 1794-ACN15, 1794-ACNR15, 1794-ACNR15XT, Series D

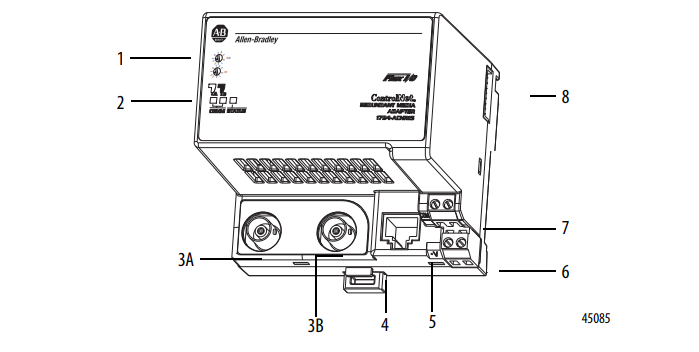

Component Identification


1: ControlNet Node selection dial
2: Indicators
3A: ControlNet network cable BNC connector A
3B :ControlNet network cable BNC connector B (1794-ACNR15, 1794-ACNR15XT only)
4: Module locking tab
5: ControlNet programming terminal network access port (NAP)
6: +24V DC connections
7: 24V common connections
8: Flexbus connector


1794-ACN15, 1794-ACNR15(XT) Series D, Firmware Revision 10.3, of the FLEX I/O ControlNet Single and Redundant adapters function as

drop-in replacements for the series C adapters and continue to support 32-bit modules  and numerical display of the firmware revision in

RSNetWorx for ControlNet  (Revision 3.21 or later).
