Allen Bradley PLC Modules FLEX Input Output Modules 4 input isolated analog module 1794-IF4I
Description

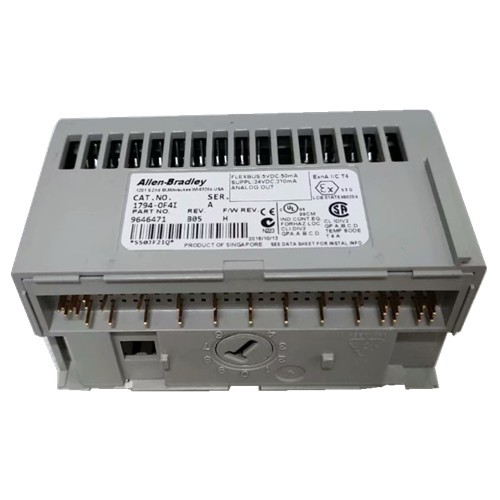

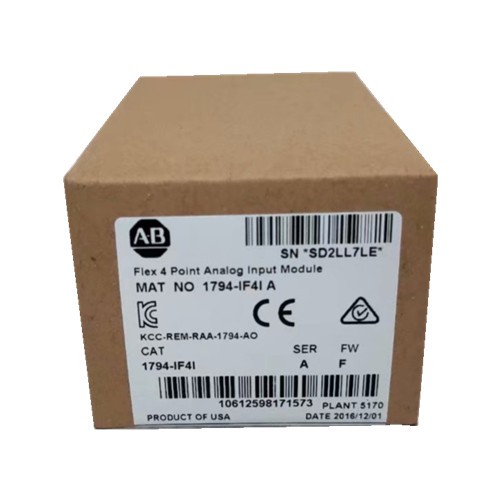

The Allen-Bradley 1794-IF4I is a Flex IO analog input module. This module features Four (4) Voltage / Current isolated analog input channels. It supports analog input current signals such as 4-20 mA (user configurable), 0-20 mA (user configurable) ±20 mA; Voltage signals such as ±10V (user configurable) 0-10V (user configurable) ±5V (user configurable) and 0-5V (user configurable). It is compatible with a variety of terminal base units such as 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS, and 1794-TBN. It is compatible with any 1794 Flex IO adapters to implement distributed I/O application.
Specifications
Manufacturer
AB Rockwell Automation
Part Number/Catalog No.
1794-IF4I
Product Description
Flex IO Isolated Analog Input Module
No. of inputs
Four (4); isolated
Terminal base
RSLogix5, RSLogix500, RSLogix5000, Studio 5000 Logix Designer
Input signal type
1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794- TB3TS, and 1794-TBN
External DC supply, nom
24V DC
External DC supply range
19.0…31.2V DC (includes 5% AC ripple)
Mounting
DIN Rail
Wire Size
Determined by installed terminal base
Operating Temperature
0 to 55 C (32 to 131 F)
Storage Temperature
–40…85 °C (–40…185 °F)
Vibration
5g @ 10 to 500 Hz
Related Models
1794-ACN
24V dc ControlNet Adapter
1794-ACNR
24V dc Redundant Media ControlNet Adapter
1794-ACN15
24V dc ControlNet Adapter
1794-ACNR15
24V dc Redundant Media ControlNet Adapter
1794-ADN
24V dc DeviceNet Adapter
1794-ASB/C
24V dc Remote I/O Adapter
1794-ASB2/B
24V dc 2-Slot Remote I/O Adapter
1794-APB
24V dc Profibus Adapter
1794-IB8
24V dc 8 Sink Input Module
1794-OB8
24V dc 8 Source Output Module
1794-IB16
24V dc 16 Sink Input Module
1794-OB16
24V dc 16 Source Output Module
1794-IV16
24V dc 16 Source Input Module
1794-OV16
24V dc 16 Sink Output Module
1794-OB8EP
24V dc 8 Electronically Fused Output Module
1794-IB8S
24V dc Sensor Input Module
1794-IB10XOB6
24V dc 10 Input/6 Output Module
1794-IE8
24V dc Selectable Analog 8 Input Module
1794-OE4
24V dc Selectable Analog 4 Output Module
1794-IE4XOE2
24V dc 4 Input/2 Output Analog Module
1794-OF4
24V dc 4 Output Isolated Analog Module
1794-IF4
24V dc 4 Input Isolated Analog Module
1794-IF2XOF2
24V dc 2 Input/2 Output Isolated Analog Module
1794-IR8
24V dc 8 RTD Input Analog Module
1794-IT8
24V dc 8 Thermocouple Input Module
1794-IRT8
24V dc 8 Thermocouple/RTD Input Module
1794-IJ2
24V dc 2 Frequency Input Module
1794-IA8
120V ac 8 Input Module
1794-OA8
120V ac Output Module
1794-TB2
2-wire Terminal Base
1794-TB3
3-wire Terminal Base
1794-TBN
Terminal Base Unit
1794-TBNF
Fused Terminal Base Unit
1794-TB3T
Temperature Terminal Base Unit
1794-TB3S
Spring Clamp Terminal Base Unit
1794-TB3TS
Spring Clamp Temperature Base Unit
1794-TB3G
Terminal Base Unit
1794-TB3GS
Spring Clamp Terminal Base Unit
1794-CE1,1794-CE3
Extender Cables
1794-NM1
Mounting Kit
1794-PS1
24V dc Power Supply
Overview

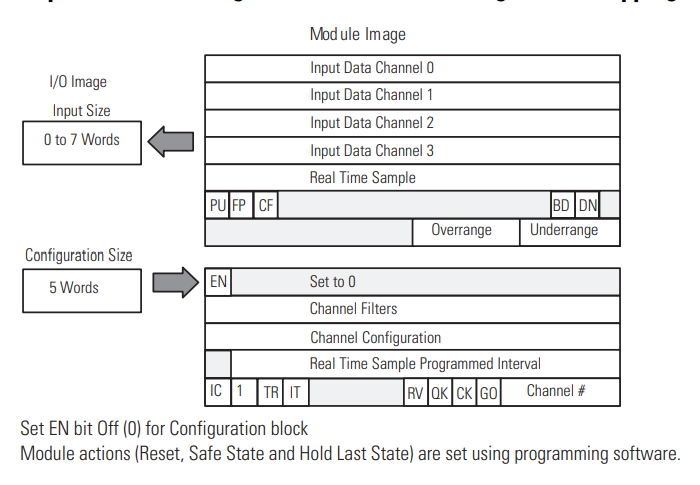

4 Input Isolated Analog Module — 1794-IF4I Image Table Mapping
